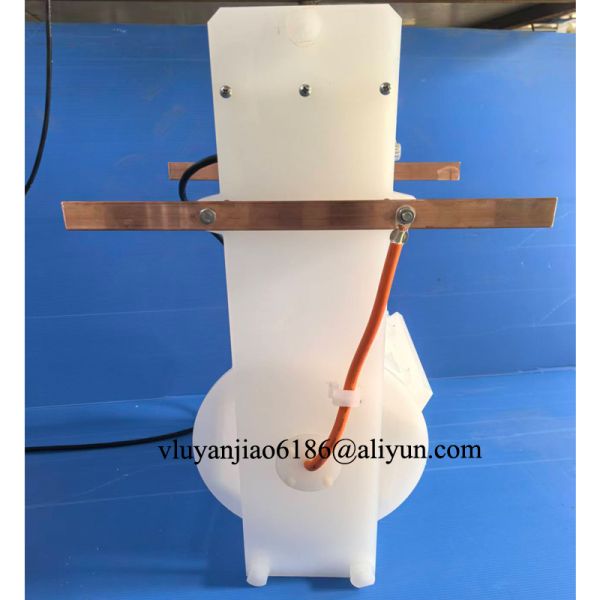

mini PP Electroplating Barrel For Barrel zine copper Plating Machine Line

The electroplating barrel is available in hexagonal, round, and octagonal shapes for larger drums. Hexagonal barrels provide superior part turning uniformity, especially when loading volume doesn't exceed half capacity. Round barrels offer easier manufacturing and 21% greater charge volume compared to hexagonal barrels of the same dimensions. For drums with inner diameters exceeding 420mm, octagonal designs are recommended for stable conductivity and reduced radius differential.

Dual-section drums are available for simultaneous plating of different parts, featuring separate left and right compartments.

Cylinder wall perforations facilitate current conduction between cathode and anode while enabling solution convection. Available hole shapes include round, square, and rectangular configurations. Round holes offer flexibility for custom drilling based on product size, while square and rectangular openings require pre-planned manufacturing with specialized porous plates.

Round holes provide larger open area percentages, reducing solution carry-out during plating, decreasing wastewater treatment loads, lowering tank voltage, and minimizing solution temperature rise - all contributing to improved economic and environmental performance.

For round-hole drums processing parts with minimum diameters of 1.8mm, small perpendicular holes are standard. Hole positioning follows staggered triangular arrangements to maximize drum strength and rigidity. Proper hole spacing prevents localized scorching and dotted patterns during high-current-density operations.

Our manual barrel plating production line supports zinc, copper, gold, nickel electroplating and anode oxidation processes. Designed for compact operation with minimal footprint, this system provides cost-effective solutions for electronics manufacturers and plating facilities requiring flexible processing capabilities.

• Constructed from high-temperature resistant polypropylene
• Simple manual operation with excellent performance
• Ideal for small batch production of small workpieces
• Compact footprint with competitive pricing
• Suitable for hardware and electronic industries with flexible process control
• Motor-driven with worm gear speed reducer (6-30 RPM adjustable speed)

• Plating Method: Barrel plating and Hang plating
• Control Systems: Portable equipment, Manual plating line, Semi-automatic plating line, Full-automatic line
• Applications: Zinc plating, Nickel plating, Chrome plating, Copper plating, Gold plating, Anodizing

All electroplating lines are custom-designed based on your specific product requirements and include comprehensive pre-delivery testing:

• Anti-leakage Testing: 72-hour water fill testing after welding
• Running Testing: Full equipment operation with video documentation

Warranty: One year (free replacement for manufacturing defects, excluding human damage)

Manufacturing: Factory direct pricing with export licensing for international shipments

We employ various packing methods including carton boxes and wooden cases, tailored to product specifications. Shipping options include:

• Sea Freight: Most economical for large shipments with longer transit times
• Air Freight: Faster delivery with higher costs
• Express Delivery: Flexible door-to-door service at premium rates
